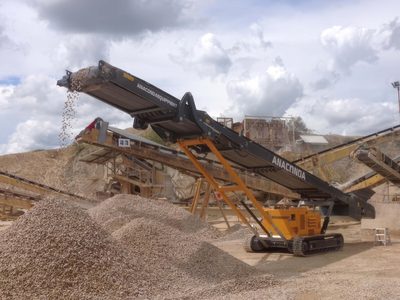

  • TR60 Tracked conveyor

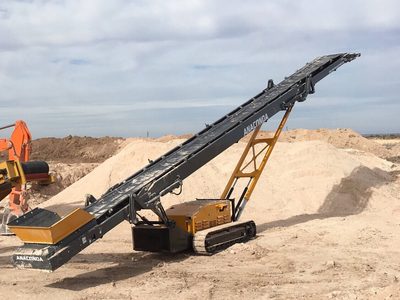

  • TR75 Tracked conveyor

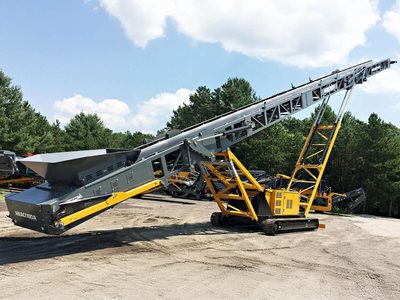

  • TR100 Tracked conveyor

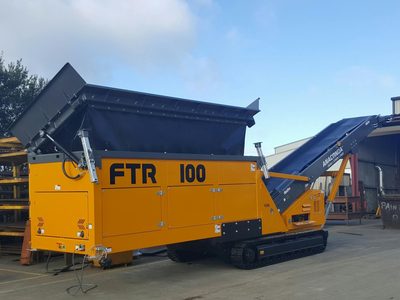

  • FTR100 Tracked feeding conveyor

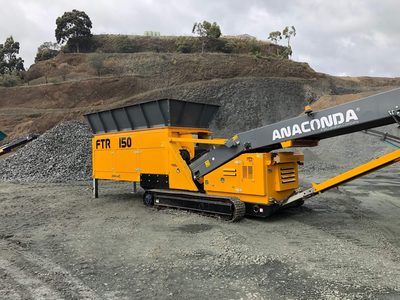

  • FTR150 Tracked feeding conveyor
  • FTR200 Tracked feeding conveyor

About Skreenquip

over 35 years of crushing and screening experience.

Skreenquip rents, sells and services machines across Western Canada, and consults on the job before you commit.

Anaconda dealer for British Columbia.

We sell, rent, supply parts for and service Anaconda’s full tracked line of crushers, screeners and conveyors, from our yard in Delta, BC.

Read Anaconda’s announcement

See the Anaconda Range

New equipment

View All New Equipment View All New Equipment

Crushers

Screeners

Conveyors

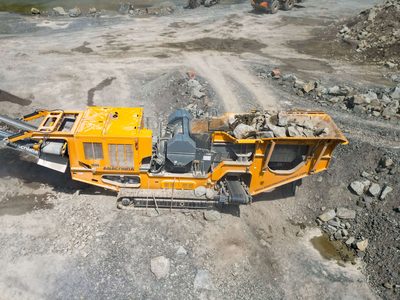

Anaconda J12 jaw crusher in a quarry from above, its hopper full of rock

J12 Jaw crusher

Tracked primary jaw crusher with a 44″ × 28″ direct hydraulic drive jaw chamber

Get a Quote Learn More

Or call 604-940-8210

Crushing chamber
1,100 × 700 mm (44″ × 28″)
Closed side setting
50 – 190 mm (2″ – 7.5″)
Jaw speed
250 – 280 rpm
Hopper capacity
6.5 m³ (8.5 yd³)
Feeder
Vibrating grizzly feeder
Power unit options
Cummins IPU L9 380, 283 kW (380 HP) or CAT 9.3, 310 kW (416 HP), Stage V
Weight
45,350 kg (100,000 lbs)
Dimensions (L × W × H)
14.33 × 4.27 × 3.83 m (47′ long, 12′ 7″ high)

Suited to

Abrasive materials such as basalt, granite, recycled concrete and virgin rock

Anaconda’s published figures. J12 on anacondaequipment.com

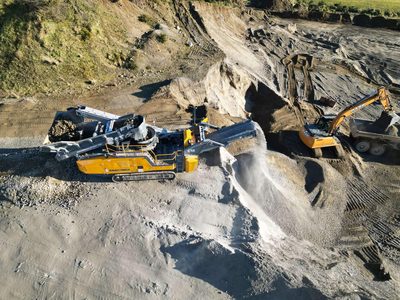

Anaconda C12 cone crusher working in a sand and gravel pit, an excavator loading a truck behind it

C12 Cone crusher

Open circuit tracked cone crusher built around an FLSmidth Raptor® 250 chamber

Get a Quote Learn More

Or call 604-940-8210

Cone chamber
FLSmidth Raptor® 250
Closed side setting
6 – 235 mm (1/4″ – 9 1/4″)
Hopper capacity
6.5 m³ (8.5 yd³)
Belt feeder
1,220 mm (48″)
Power unit
CAT 9.3, 310 kW (416 HP), Stage V
Weight
33,000 kg (72,752 lbs)
Dimensions (L × W × H)
14,453 × 3,755 × 4,664 mm (47′ 5″ × 12′ 4″ × 15′ 4″)

Suited to

Secondary or tertiary crushing

Anaconda’s published figures. C12 on anacondaequipment.com

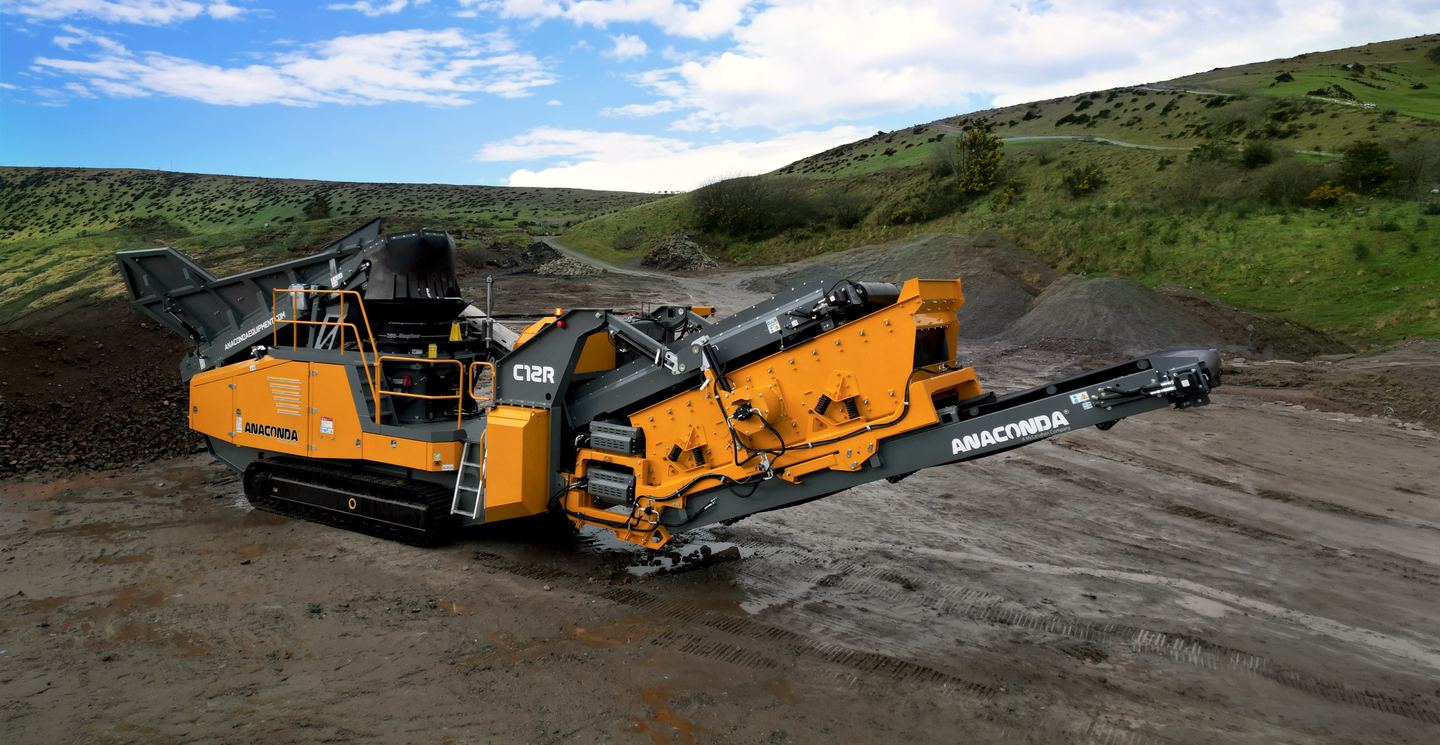

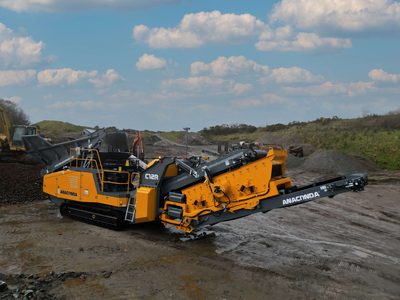

Anaconda C12R closed-circuit cone crusher on a job site

C12R Cone crusher

Closed circuit tracked cone crusher with a Raptor® 250 chamber and 12′ × 5′ screenbox

Get a Quote Learn More

Or call 604-940-8210

Cone chamber
FLSmidth Raptor® 250
Recirculating screenbox
3.66 × 1.52 m (12′ × 5′), top and bottom deck
Closed side setting
6 – 235 mm (1/4″ – 9 1/4″)
Hopper capacity
6.5 m³ (8.5 yd³)
Auxiliary transfer conveyor
500 mm (20″)
Power unit
CAT 9.3, 310 kW (416 HP), Stage V
Weight
40,000 kg (88,184 lbs)
Dimensions (L × W × H)
17,707 × 3,990 × 4,804 mm (58′ 1″ × 12′ 10″ × 15′ 9″)

Suited to

Aggregate applications, secondary and tertiary crushing

Anaconda’s published figures. C12R on anacondaequipment.com

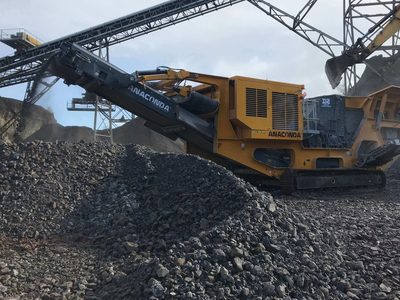

Anaconda I12 impact crusher in a quarry

I12 Impact crusher

Open circuit tracked impact crusher with a 4-bar rotor and direct hydraulic drive

Get a Quote Learn More

Or call 604-940-8210

Crushing chamber
Universal, 1,090 × 1,140 mm (43″ × 45″)
Rotor
4-bar, 1,090 mm (43″)
Impact speed range
630 – 700 rpm
Hopper capacity
6.5 m³ (8.5 yd³)
Feeder
Vibrating grizzly feeder
Power unit options
Cummins IPU L9 380, 283 kW (380 HP) or CAT 9.3, 310 kW (416 HP), Stage V
Weight
40,000 kg (88,185 lbs)
Dimensions (L × W × H)
14,808 × 3,868 × 3,921 mm (48′ 7″ × 12′ 8″ × 12′ 10″)

Suited to

Secondary or tertiary crushing of virgin rock, C&D waste, basalt and blue rock

Anaconda’s published figures. I12 on anacondaequipment.com
Anaconda I12R closed-circuit impact crusher in a quarry, from above

I12R Impact crusher

Closed circuit tracked impact crusher with a double-deck recirculating screenbox

Get a Quote Learn More

Or call 604-940-8210

Crushing chamber
Universal, 1,140 mm (45″)
Rotor
4-bar, 1,090 mm (43″)
Recirculating screen
High-energy double-deck screenbox
Impact speed range
630 – 700 rpm
Hopper capacity
6.5 m³ (8.5 yd³)
Power unit options
Cummins IPU L9 380, 283 kW (380 HP) or CAT 9.3, 310 kW (416 HP), Stage V
Weight
50,000 kg (110,231 lbs)
Dimensions (L × W × H)
17.2 × 4.46 × 4.5 m (56′ 5″ × 14′ 7″ × 14′ 9″)

Suited to

Secondary or tertiary crushing of blue rock, virgin rock, basalt and C&D waste

Anaconda’s published figures. I12R on anacondaequipment.com

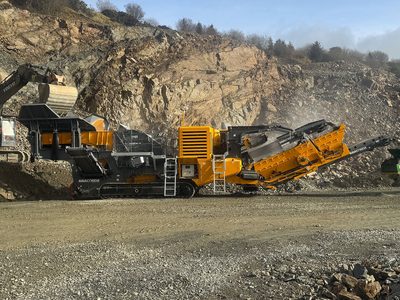

Anaconda I14 impact crusher fed by an excavator in a quarry

I14 Impact crusher

Open circuit tracked impact crusher with a 47″ × 51″ McLanahan chamber

Get a Quote Learn More

Or call 604-940-8210

Crushing chamber
McLanahan, 1,195 × 1,295 mm (47″ × 51″)
Rotor
3-bar standard, 4-bar optional
Hopper capacity
6.75 m³ (8.82 yd³)
Power unit options
CAT C13B, 400 kW (536 HP) or CAT C13, 385 kW (516 HP), Stage V
Weight
46,800 kg (102,960 lbs)
Dimensions (L × W × H)
15,950 × 3,050 × 4,951 mm (52′ 4″ × 10′ × 16′ 3″)

Suited to

Aggregate crushing, C&D recycling, asphalt processing and concrete recycling

Anaconda’s published figures. I14 on anacondaequipment.com

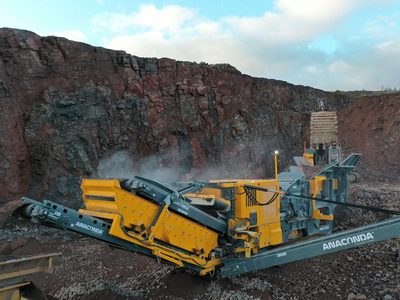

Anaconda I14R closed-circuit impact crusher working in a quarry

I14R Impact crusher

Closed circuit tracked impact crusher with a 14′ × 6′ double-deck after screen

Get a Quote Learn More

Or call 604-940-8210

Crushing chamber
McLanahan Universal, 1,195 × 1,295 mm (47″ × 51″)
Rotor
3-bar standard, 4-bar optional
Double-deck screen
4.27 × 1.83 m (14′ × 6′)
Hopper capacity
6.75 m³ (8.82 yd³)
Power unit options
CAT C13B, 400 kW (536 HP) or CAT C13, 385 kW (516 HP), Stage V
Weight
56,800 kg (125,000 lbs)
Dimensions (L × W × H)
18,860 × 3,600 × 4,313 mm (61′ 10″ × 11′ 10″ × 14′ 2″)

Suited to

Aggregate crushing, C&D recycling, asphalt processing and concrete recycling

Anaconda’s published figures. I14R on anacondaequipment.com

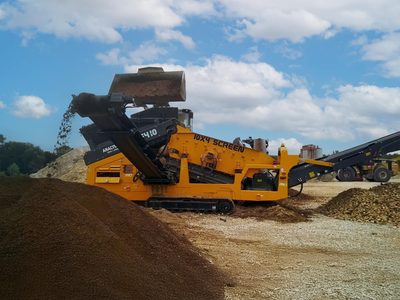

Anaconda DF410 scalping screen fed by a loader bucket

DF410 Scalping screen

Compact tracked scalping screen with a 10′ × 4′ two-deck box, for confined sites

Get a Quote Learn More

Or call 604-940-8210

Screen box
3 × 1.2 m (10′ × 4′), 2 decks
Capacity
Up to 230 tph (254 US tph)
Max feed size
300 mm (12″)
Products
Up to 3
Hopper capacity
4.5 m³ (5.9 yd³)
Screen angle
15° fixed
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight
15,600 kg (34,400 lbs)
Dimensions (L × W × H)
11.54 × 11.25 × 3.70 m (37′ 7″ × 36′ 9″ × 12′ 1″)

Suited to

Quarry rock, virgin soil, recycled concrete, topsoil, riverbed, utility waste, scrap metal and asphalt millings

Anaconda’s published figures. DF410 on anacondaequipment.com
Anaconda DF514 scalping screen stockpiling on a job site

DF514 Scalping screen

Tracked primary scalping screen with a 14′ × 5′ screen box, up to 350 tph

Get a Quote Learn More

Or call 604-940-8210

Screen box
4.27 × 1.52 m (14′ × 5′)
Capacity
Up to 350 tph (386 US tph)
Max feed size
300 mm (12″)
Products
Up to 3
Hopper capacity
7.2 m³ (9.4 yd³)
Screen box angle
15° – 19°
Power unit (Tier 4 Final)
JCB 444 EcoMAX IPU, 93 kW (125 HP)
Weight
Belt feed 24,300 kg (53,572 lbs); apron feed 27,500 kg (60,627 lbs)
Dimensions (L × W × H)
13.60 × 13.90 × 4.40 m (44′ 6″ × 45′ 6″ × 14′ 7″)

Suited to

Road waste, rock, road subbase, demolition waste, overburden and aggregates

Anaconda’s published figures. DF514 on anacondaequipment.com

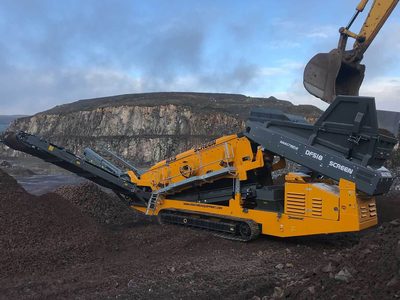

Anaconda DF518 scalping screen fed by an excavator

DF518 Scalping screen

Tracked primary scalping screen with an 18′ × 5′ screen box, up to 375 tph

Get a Quote Learn More

Or call 604-940-8210

Screen box
5.49 × 1.52 m (18′ × 5′)
Capacity
Up to 375 tph (413 US tph)
Max feed size
300 mm (12″)
Hopper capacity
8 m³ (10.5 yd³)
Screen box angle
13° – 17°
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 93 kW (125 HP)
Weight
Belt feed 30,500 kg (67,240 lbs); apron feed 32,000 kg (70,547 lbs)
Dimensions (L × W × H)
15.49 × 13.84 × 4.86 m (50′ 8″ × 45′ 4″ × 15′ 9″)

Suited to

Bulky and abrasive materials such as quarry rock and overburden

Anaconda’s published figures. DF518 on anacondaequipment.com

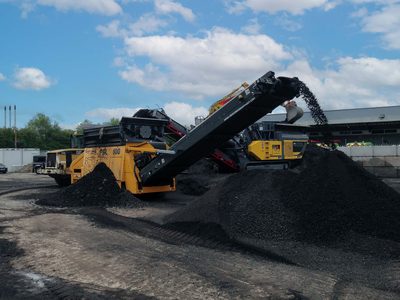

Anaconda FSL100 heavy-duty scalper stockpiling dark aggregate in a yard, other machines behind it

FSL100 Heavy-duty scalper

Heavy-duty tracked primary scalper with a 12′ × 7′ double-deck screen, up to 600 tph

Get a Quote Learn More

Or call 604-940-8210

Screen
3.8 × 2.4 m (12′ × 7′) double-deck vibrating screen
Capacity
Up to 600 tph (661 US tph)
Max feed size
500 mm (20″)
Hopper capacity
4.8 m³ (6.3 yd³)
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight
18,900 kg (41,667 lbs)
Dimensions (L × W × H)
12.30 × 2.56 × 4.05 m (40′ 4″ × 8′ 4″ × 13′ 3″)

Suited to

High-capacity, abrasive scalping such as road and concrete waste

Anaconda’s published figures. FSL100 on anacondaequipment.com

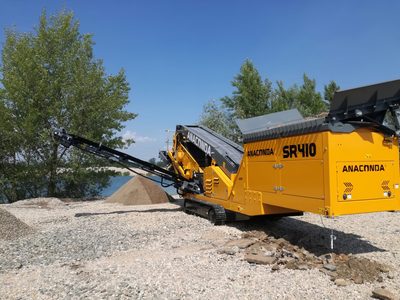

Anaconda SR410 finishing screen on gravel

SR410 Finishing screen

Compact tracked finishing screen with a 10′ × 4′ box, stockpiles up to 3 products

Get a Quote Learn More

Or call 604-940-8210

Screen box
3 × 1.2 m (10′ × 4′)
Capacity
Up to 200 tph (220 US tph)
Max feed size
75 mm (3″)
Products
Up to 3
Feed hopper
4.26 m (14′) long, 5.8 m³ (7.1 yd³)
Screen box angle
28° – 36°
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight
15,500 kg (34,000 lbs)
Dimensions (L × W × H)
13.60 × 11 × 4.30 m (44′ 6″ × 36′ 1″ × 14′ 1″)

Suited to

Sand, gravel, coal and aggregates

Anaconda’s published figures. SR410 on anacondaequipment.com

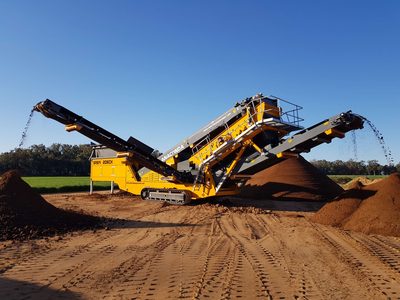

Anaconda SR514 two-deck finishing screen discharging onto piles of red earth

SR514 Finishing screen

Tracked 2 or 3-deck finishing screen with a 14′ × 5′ box, up to 4 products

Get a Quote Learn More

Or call 604-940-8210

Screen box
4.33 × 1.52 m (14′ × 5′), 2 or 3 deck
Capacity
Up to 350 tph (385 US tph)
Max feed size
125 mm (5″)
Products
Up to 4
Hopper capacity
8 m³ (10.4 yd³)
Power unit (Tier 4 Final)
JCB 444 EcoMAX IPU, 93 kW (125 HP)
Weight
2-deck 26,500 kg (58,000 lbs); 3-deck 28,500 kg (62,000 lbs)
Dimensions (L × W × H)
17.50 × 15.60 × 5.26 m 2-deck, 5.50 m 3-deck (57′ 4″ × 51′ 2″ × 17′ 3″ / 17′ 11″)

Suited to

Quarry aggregates, crusher run, recycled C&D waste, sand, topsoil, coal and fine aggregate

Anaconda’s published figures. SR514 on anacondaequipment.com

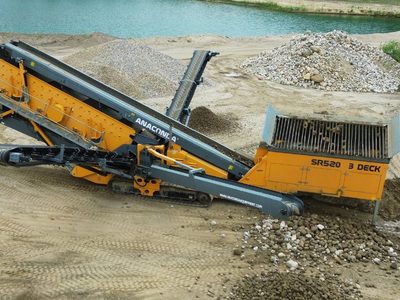

Anaconda SR520 3 deck screen working in a gravel pit

SR520 Finishing screen

Tracked 2 or 3-deck finishing screen with a 20′ × 5′ box, up to 4 products

Get a Quote Learn More

Or call 604-940-8210

Screen box
6 × 1.52 m (20′ × 5′), 2 or 3 deck
Capacity
Up to 350 tph (385 US tph)
Products
Up to 4
Feed hopper
4.26 m (14′) long, 8 m³ (10.4 yd³)
Screen box angle
18° – 30°
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 129 kW (173 HP)
Weight
2-deck 34,900 kg (76,940 lbs); 3-deck 38,560 kg (85,010 lbs)
Dimensions (L × W × H)
19.80 × 19.80 × 6.28 m (65′ × 64′ 9″ × 20′ 7″)

Suited to

Dry screening of quarry aggregates and road base

Anaconda’s published figures. SR520 on anacondaequipment.com

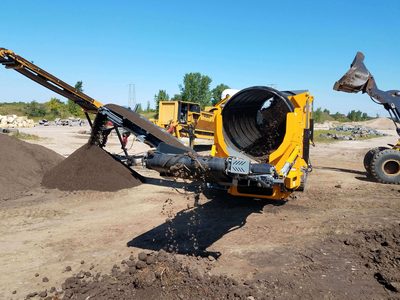

Anaconda TD620 trommel screen stockpiling topsoil, a loader beside it

TD620 Trommel screen

Tracked primary trommel screen with a 2 m drum, up to 200 tph

Get a Quote Learn More

Or call 604-940-8210

Screen drum
5.5 m long × 2 m diameter (18′ × 6′ 5″)
Capacity
Up to 200 tph (220 US tph)
Max feed size
300 mm (12″)
Max screen size
75 mm (3″)
Hopper capacity
9.6 m³ (12.6 yd³)
Screen angle
0° – 6°
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 93 kW (125 HP)
Weight
20,000 kg (44,000 lbs)
Dimensions (L × W × H)
13.85 × 6.90 × 3.74 m (45′ 4″ × 22′ 6″ × 12′ 3″)

Suited to

Topsoil, sand, shredded waste, aggregate, dolomite and compost

Anaconda’s published figures. TD620 on anacondaequipment.com
Anaconda FTR100 tracked feeding conveyor in a yard

FTR100 Tracked feeding conveyor

Tracked feeding conveyor with a 4.2 m feeder; fits a standard 40′ shipping container

Get a Quote Learn More

Or call 604-940-8210

Feeder
4.2 m (14′)
Hopper capacity
10 m³ (13 yd³)
Belt feeder
1,050 mm (42″), variable speed
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight (with vibrating grid)
17,200 kg (37,919 lbs)
Dimensions (L × W × H)
11.68 × 2.25 × 4.15 m (38′ × 7′ 4″ × 13′ 6″)
Transport
Fits a standard 12 m (40′) shipping container

Suited to

Sand, gravel, aggregates, compost, coal and wood chips

Anaconda’s published figures. FTR100 on anacondaequipment.com
Anaconda FTR150 tracked feeding conveyor in a quarry yard

FTR150 Tracked feeding conveyor

Mid-size tracked feeding conveyor with a 15 m (50′) stockpiling conveyor

Get a Quote Learn More

Or call 604-940-8210

Stockpiling conveyor
15 m (50′), variable speed
Hopper capacity
10 m³ (13 yd³)
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight (with vibrating grid)
17,800 kg (39,200 lbs)
Dimensions (L × W × H)
17.30 × 2.25 × 6.58 m (56′ 11″ × 7′ 4″ × 21′ 6″)

Suited to

Rock scalping, concrete, waste, wood chips and mulch

Anaconda’s published figures. FTR150 on anacondaequipment.com
Anaconda TR60 tracked conveyor discharging gravel onto a pile at a quarry

TR60 Tracked conveyor

Compact tracked conveyor with an 18 m (60′) body that fits a 40′ shipping container

Get a Quote Learn More

Or call 604-940-8210

Conveyor length
18 m (60′)
Belt
900 mm (36″), 3-ply plain
Max feed size
100 mm (4″)
Height
8.4 m (27′ 4″)
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight
11,000 kg (24,250 lbs)
Dimensions (L × W × H)
16.6 – 18.3 m × up to 2.3 m × 8.4 m (54′ 6″ – 60′ × 7′ 5″ × 27′ 4″)
Transport
Fits a standard 40′ shipping container

Anaconda’s published figures. TR60 on anacondaequipment.com

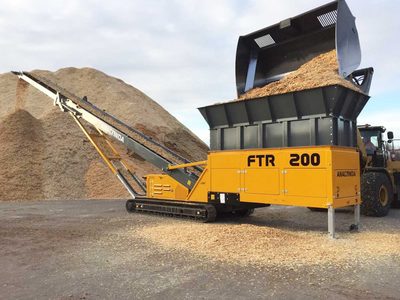

Anaconda FTR200 tracked feeding conveyor loaded with wood chips

FTR200 Tracked feeding conveyor

Largest tracked feeding conveyor, with a 20 m (66′) stockpiling conveyor

Get a Quote Learn More

Or call 604-940-8210

Stockpiling conveyor
20 m (66′), variable speed
Hopper capacity
13 m³ (17 yd³)
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight (with vibrating grid)
18,985 kg (41,854 lbs)
Dimensions (L × W × H)
22.49 × 2.55 × 8.97 m (73′ 8″ × 8′ 3″ × 29′ 4″)

Suited to

Sand, gravel, aggregates, compost, coal and wood chips; stockpiling and loading barges or trucks

Anaconda’s published figures. FTR200 on anacondaequipment.com
Anaconda TR75 tracked conveyor raised over sand piles, an excavator at the left edge

TR75 Tracked conveyor

Tracked conveyor with a 23 m (75′) body, moving up to 500 tph

Get a Quote Learn More

Or call 604-940-8210

Conveyor length
23 m (75′)
Belt
1,050 mm (42″), 3-ply plain
Feed capacity
Up to 500 tph (551 US tph)
Max material size
100 mm (4″)
Height
10.50 m (34′ 5″)
Power unit (Tier 4 Final)
JCB 444 EcoMAX, 55 kW (74 HP)
Weight
14,500 kg (31,967 lbs)
Dimensions (L × W × H)
21 – 23 × 2.30 × 10.50 m
Transport
Fits a standard 40′ shipping container with minimal dismantling

Anaconda’s published figures. TR75 on anacondaequipment.com
Anaconda TR100 tracked conveyor raised in a yard

TR100 Tracked conveyor

Largest TR tracked conveyor, 31 m body building stockpiles up to 13.5 m

Get a Quote Learn More

Or call 604-940-8210

Conveyor length
31 m (101′ 8″)
Belt
1,050 mm (42″), 3-ply plain
Stockpile height
Up to 13.5 m (45′)
Power unit (Tier 4 Final)
JCB 444, 55 kW (74 HP); JCB 85 kW (114 HP) for higher tonnages
Weight
19,200 kg (42,328 lbs)
Dimensions (L × W × H)
31 × 2.9 × 13.5 m (101′ 8″ × 9′ 6″ × 44′ 3″)

Suited to

Topsoil, wood chips and aggregate

Anaconda’s published figures. TR100 on anacondaequipment.com

Used equipment

View All Used Equipment View All Used Equipment

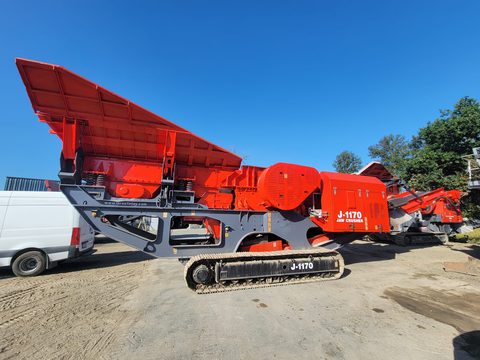

The 2018 Finlay J-1170 jaw crusher parked in a gravel yard, side view

J-1170 Jaw crusher

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2018
Hours
2,400
Power unit
Scania DC09
Jaw opening
44" x 28" (1,100 x 700 mm)
Hopper
9 m³
Main conveyor
40"
Undercarriage
Tracked
Suited to
Quarry work, demolition material, recycling
Location
Delta, BC

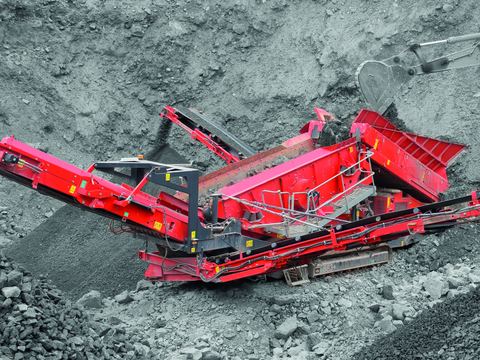

Manufacturer photo, not this unit: An 883+ scalping screener working in a quarry

Manufacturer photo, not this unit

883+ Scalping screener

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2022
Hours
1,800
Screenbox
16' x 5'
Location
Delta, BC

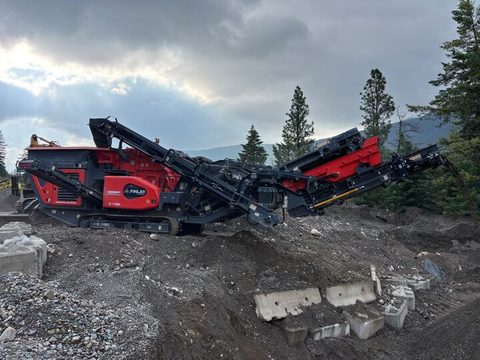

The 2022 Finlay IC-110RS impact crusher on a job site, with broken concrete barriers in front

IC-110RS Impact crusher

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2022
Hours
1,100
Chamber
41" x 40", with a 9' x 5' recirculating screen
Location
Delta, BC

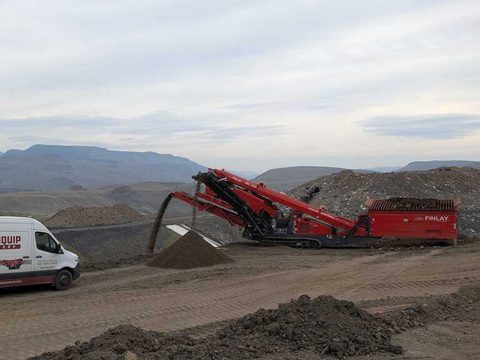

The 2025 Finlay 684 two-deck screener stockpiling on a hillside job site, with a Skreenquip van parked in front

684 Two-deck incline screener

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2025
Hours
400
Screen
10' x 4', 2 decks
Location
Delta, BC

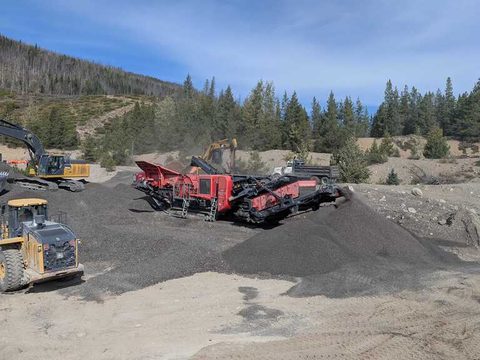

The 2019 Finlay I-120RS impact crusher on a gravel job site, with an excavator and a loader working nearby

I-120RS Impact crusher

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2019
Hours
2,800
Chamber
41" x 44", direct drive
Location
Delta, BC

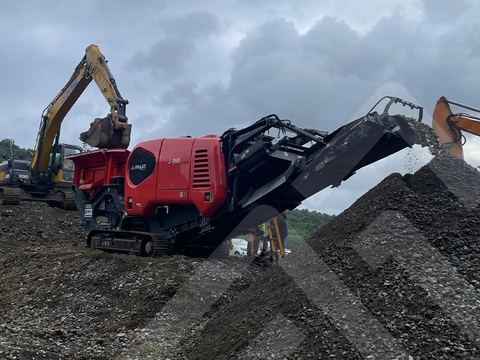

Manufacturer photo, not this unit: A J-960 jaw crusher being fed by an excavator

Manufacturer photo, not this unit

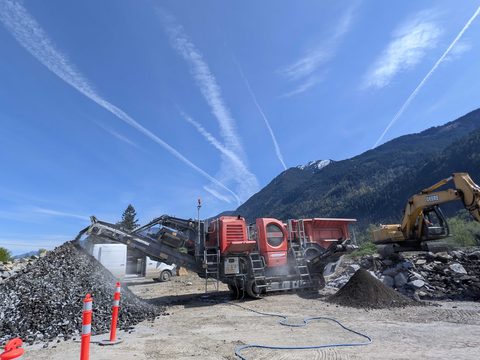

J-960 Jaw crusher

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2018
Hours
2,100
Jaw
35" x 22"
Location
Delta, BC

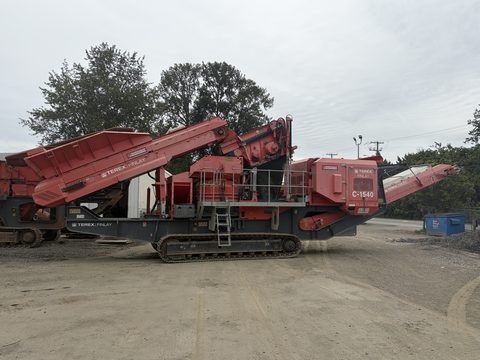

The 2018 Finlay C-1540P cone crusher in the Skreenquip yard

C-1540P Cone crusher

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2018
Hours
2,050
Location
Delta, BC

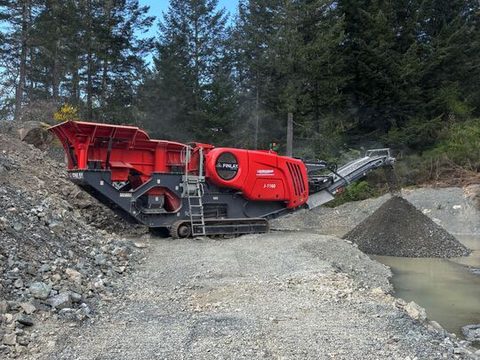

The 2023 Finlay J-1160 jaw crusher on a gravel job site among pine trees

J-1160 Jaw crusher

Call for price

Get a Quote Learn More

Or call 604-940-8210

Make
Finlay
Year
2023
Hours
2,100
Jaw
40" x 28"
Location
Delta, BC
The Fraser River canyon in British Columbia at sunset

Rentals

READY FOR ANY CHALLENGE.

No two crushing and screening jobs are the same. Different material, different tonnage, different site. Whatever yours needs, we have the machine for it.

Get a Quote
Dry hills near Kamloops, British Columbia

Parts & service

Our service team is made up of crushing and screening specialists. From maintenance and upkeep to direct text support and on-site visits, the service department is the backbone of everything we do.

We service and supply parts for every machine we have ever sold, including Finlay machines.

Book Service

Our team

Meet the team
  • Bill, Skreenquip's president, in front of a machine in the Skreenquip yard in Delta

    Bill

    Bill started Skreenquip and has run the business for over 35 years.

  • Alistair

    CEO. Builds and looks after the team and the business as a whole.

  • Dan

    Manages our day to day operations and will talk you through everything you need to get started.

  • Conor, Skreenquip's service manager, in the yard in Delta

    Conor

    Manages service so our machines are running well for every rental.

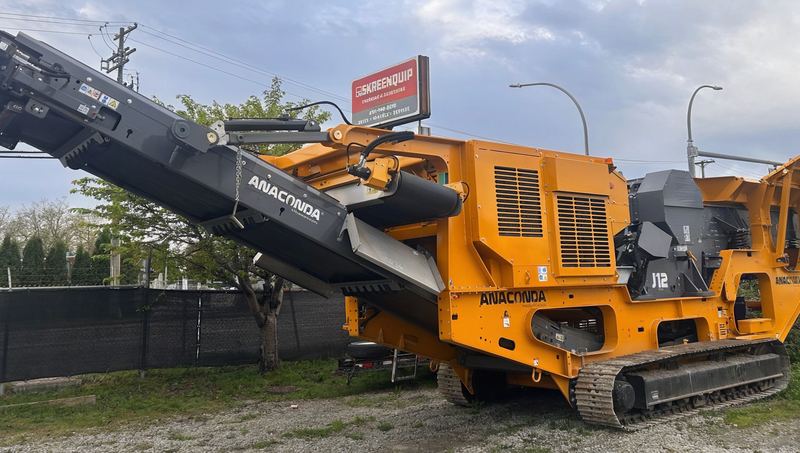

  • Nik, senior service technician, in front of an Anaconda J12 in the Skreenquip yard

    Nik

    Senior service technician. Few people know these machines better than Nik.

  • Jacob

    Service technician. Supports Nik and ensures all machines are running like a dream.

  • Gavin

    Parts Manager. Makes sure we’re up on all parts and the service department has what they need.

How can we help you?

I want to

Visit us in Delta

604-940-8210 7973 River Road, Delta, BC V4G 1C2
7973 River Road, Delta
